LineComp $295.00
LINECOMP DESIGNS:
LineComp analyzes or synthesizes eighteen different single and coupled line transmission lines. Data is supplied in tabular and graphical form for either English or Metric units. These are:
SHIELDED MICROSTRIP has a metal conductor strip plated on a dielectric sheet with a bottom groundplane plated on the opposite side of the sheet as shown below. The analysis/synthesis may include a top shield if desired.
![](/files/2019-05-31_08_53_41_image5321-jwc39a3xl2yo.png)
STRIPLINE consists of a single conductor strip sandwiched between two dielectric sheets with groundplanes plated on the opposite sides
![](/files/2019-05-31_09_33_33_image5351.png)
SYNTHESIS/ANALYSIS MENU
A typical Analysis/Synthesis window is shown on the right. Input physical and electrical parameters are entered on the left of the menu. Computed parameters are on the right of the window. A drawing of the line to be synthesized/analyzed is also shown.
A top menu is provided for printing or saving the window. You may also select to include an optional title or change the units to a variety of metric or English units.
If desired you may plot the output data over a range of values or print out a numerical tabulation over a range of values.
The Media Selection Menu is shown below which shows the choices for single and coupled transmission lines.
![](/files/2019-05-31_11_00_17_media_selection_menu.png)

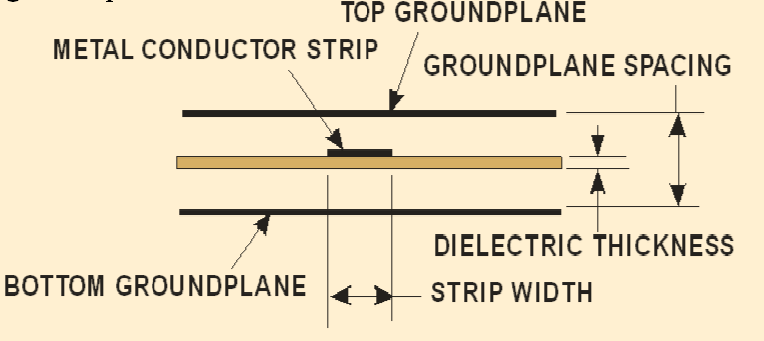

OFFSET STRIPLINE consists of a single conductor strip plated on a dielectric sheet suspended between two groundplanes.
![](/files/2019-05-31_09_48_09_offset.png)

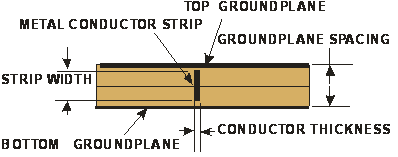

BROADSIDE STRIPLINE has a single conductor strip oriented vertically with respect to the groundplanes.
![](/files/2019-05-31_09_57_32_image7881.png)

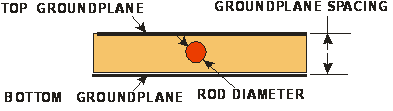

ROUND ROD STRUCTURE consists of a single rod between two groundplanes. A dielectric material may fill the spaces.
![](/files/2019-05-31_10_08_49_image4101.png)
Analysis/Symthesis Window
![](/files/2019-05-31_10_54_01_image7811.png)
